Features of our PTC heater products
- Our low-resistance PTC thermistor is used as a heating element. According to the low resistance value, the calorific value is large and the power is high
- Special electrode structure enables highly efficient heat generation
- High-reliability design could be done by electric power supply structure without soldering

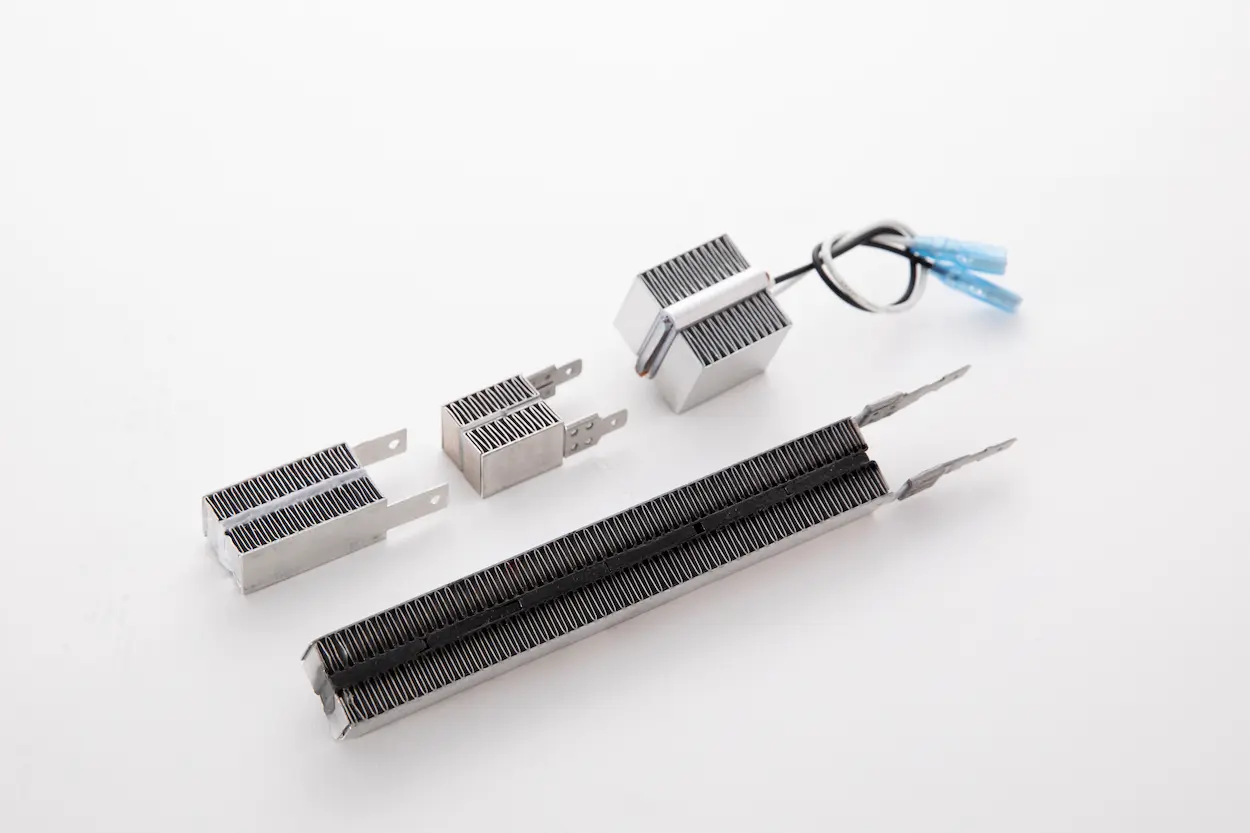

Warm Air Heater
Heater with Energy saving・Space saving and safety
Heating method
The built-in PTC element heats the heat dissipation fins and warms the air.
Customization
The size and temperature of the fins heating the air, as well as the resistance and power supply voltage can be customized.
Use Cases
By passing air through for hair dryers and fan heaters, it is possible to extract large output and supply high-temperature warm air. Even if the airflow changes, it will not overheat due to PTC's self-temperature regulation function.
Samplle for Warm Air Heater

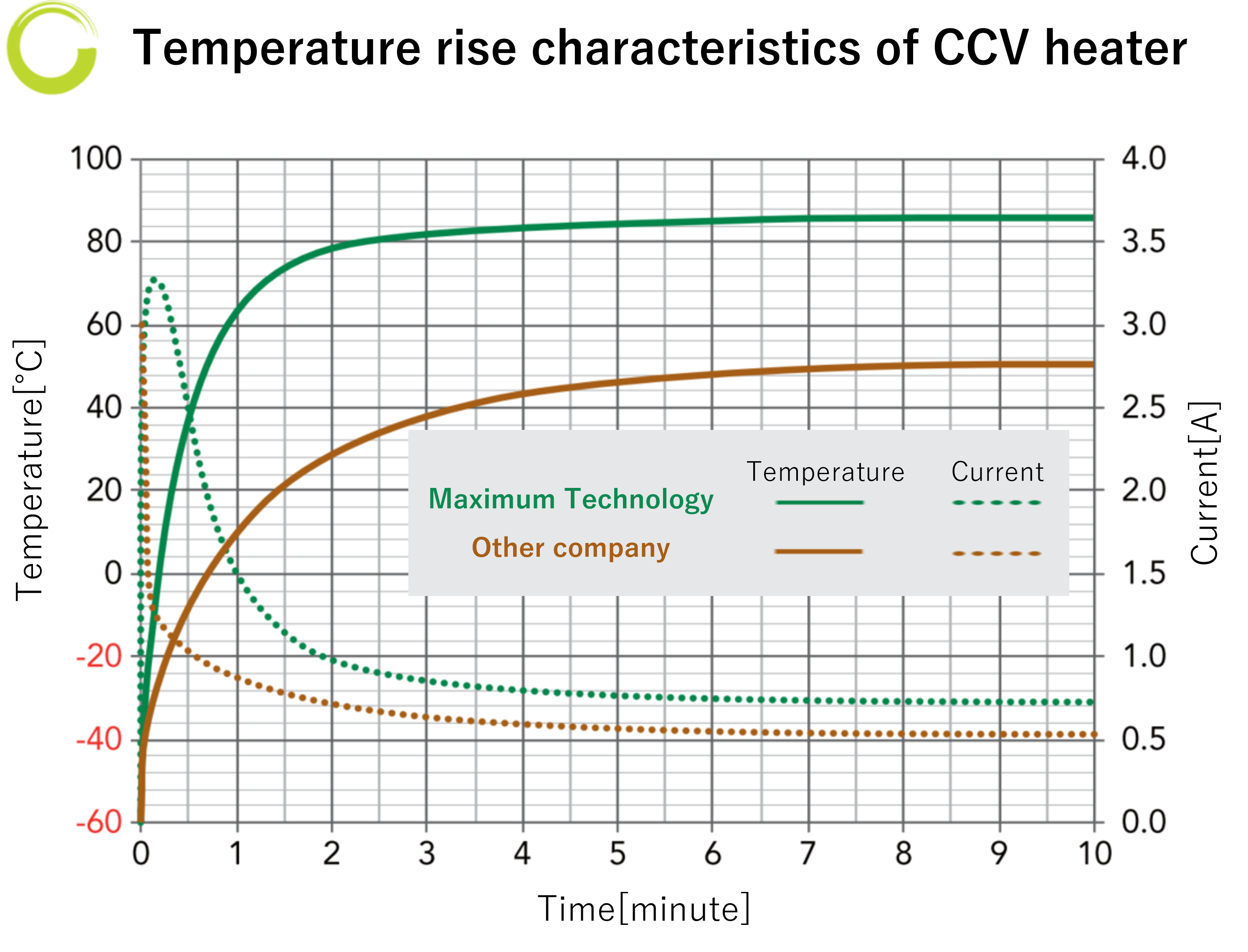

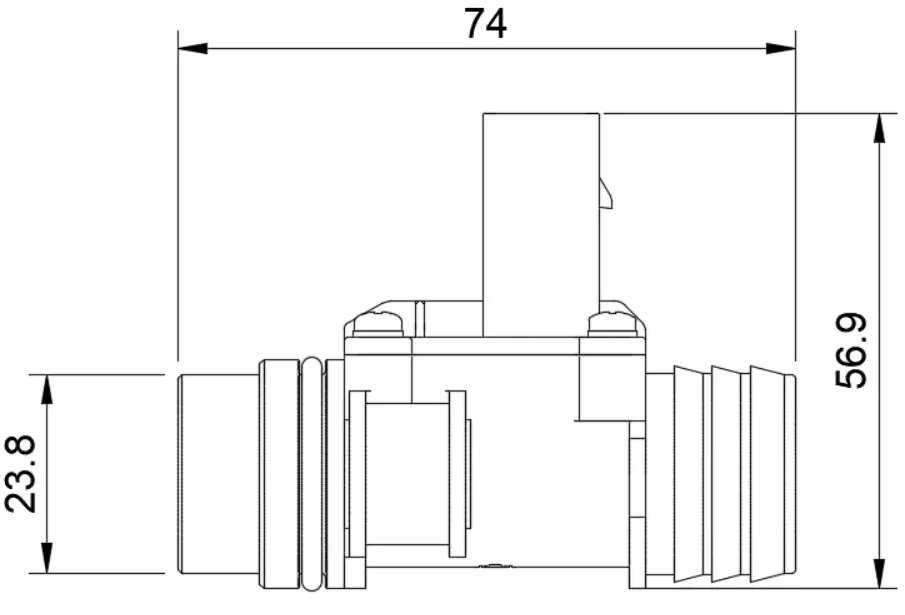

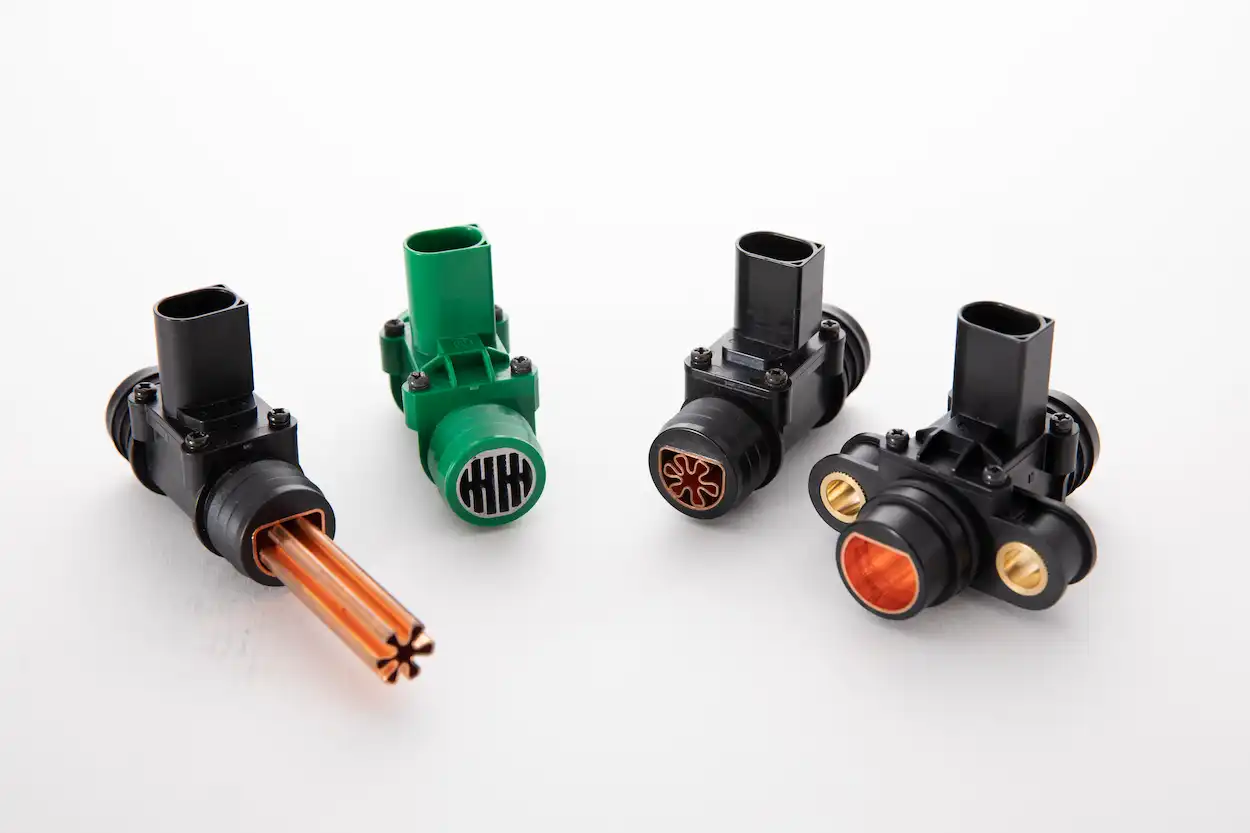

Warm up Heater for Liquid
Heating method
PTCHeater inside the unit can make the liquid warmer by metal pipe in the Unit.
Application
It is used as a heater for blow-by gas reducing equipment (CCV systems).
It can be used for construction machinery (heavy machinery), cultivators and lawn mowers, passenger cars, diesel/gasoline engines, etc.

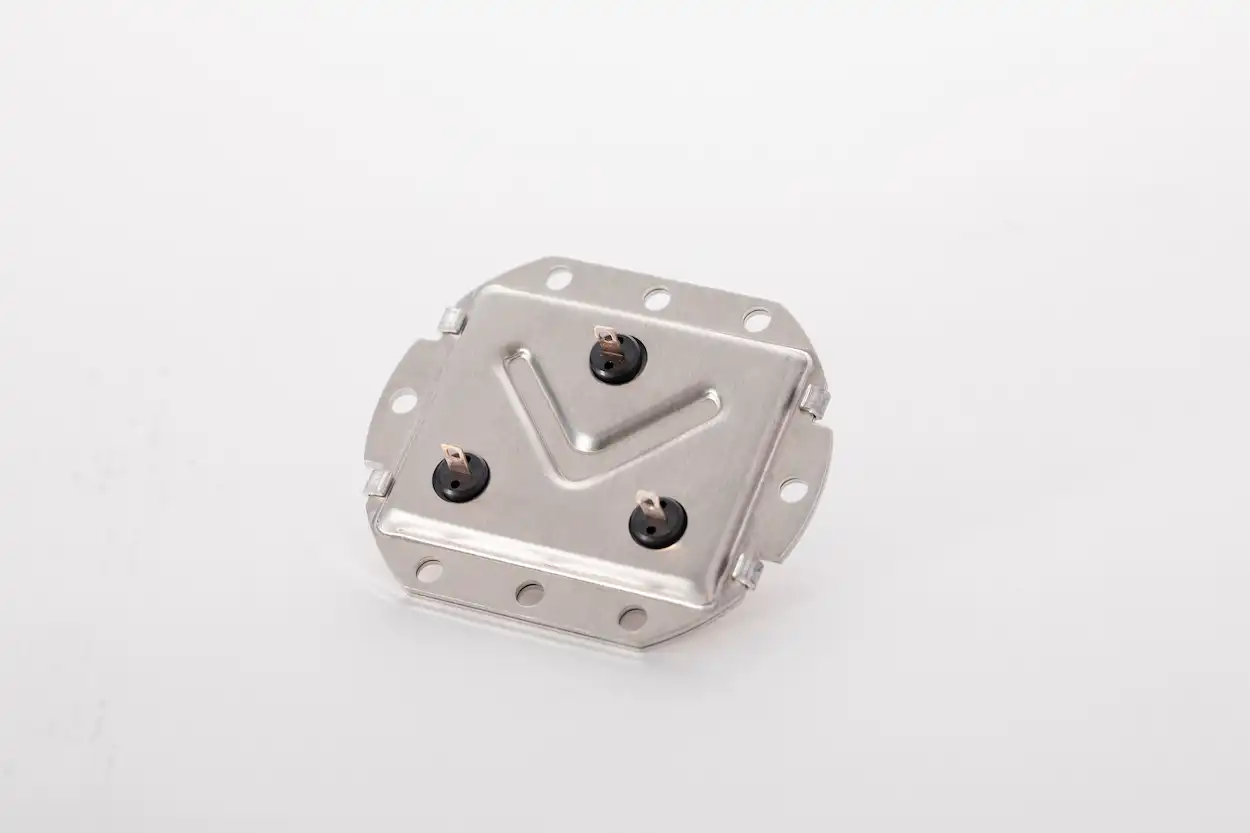

Plate Type Heater
This is a constant temperature panel heater with a built-in PTC that efficiently generates heat with a special electrode structure.
It has a number of features, such as good thermal response and high reliability.
Customization
It could be customized in size and temperature for heating product.
Application
Electronic Rice Cookers, Dryers, Copiers, and more
Heater for Anti-Freeze
Heater that can be created in various shapes.
In cold regions and in winter,the machine and battery may freeze,resulting in insufficient performance.

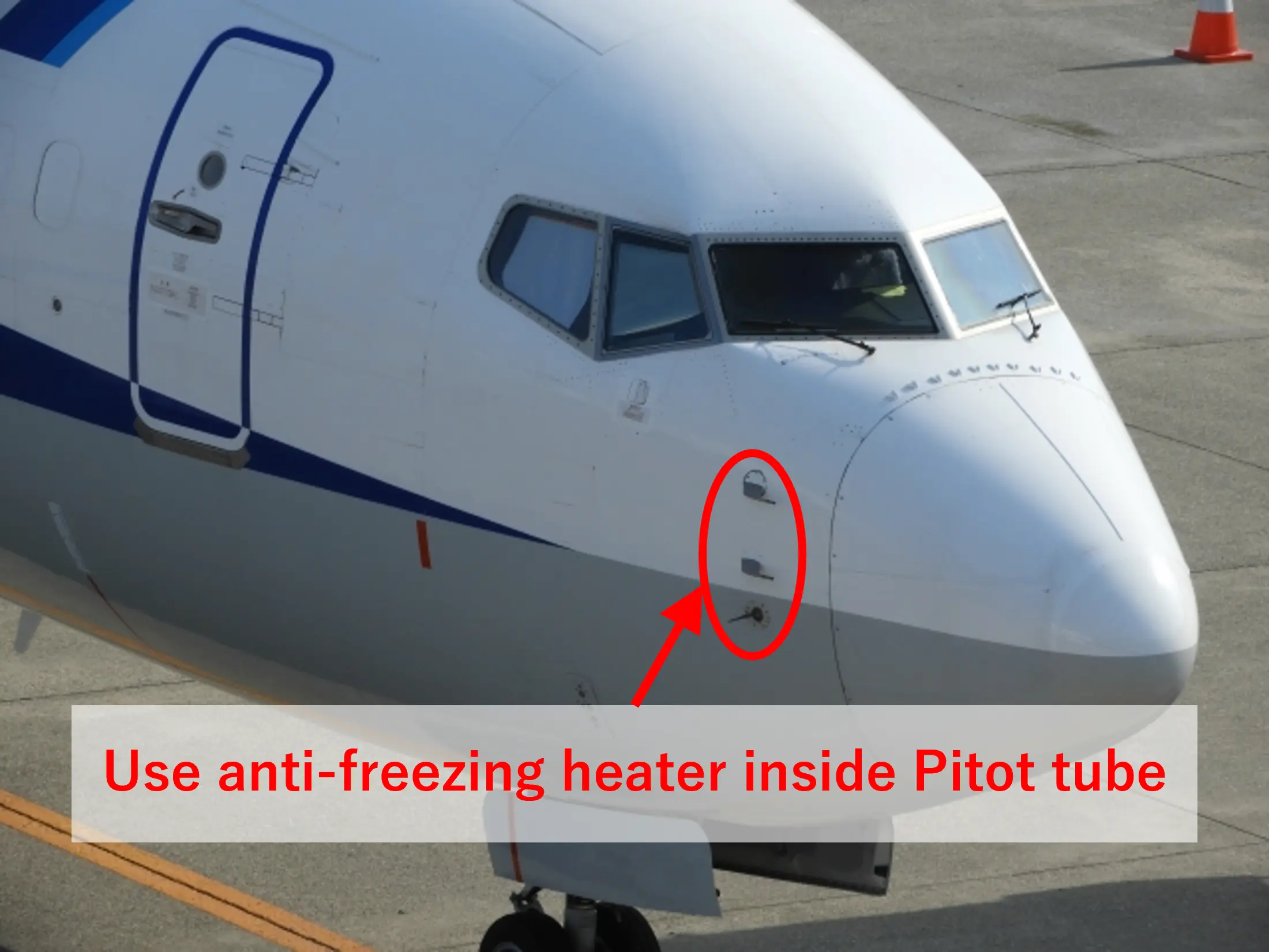

For example,PTC heaters are used to prevent freezing of Pitot tubes(figure on the right),which are parts of airplanes.
Our PTC heater with low resistance make customers to satisfy by our design with small space and less energy.

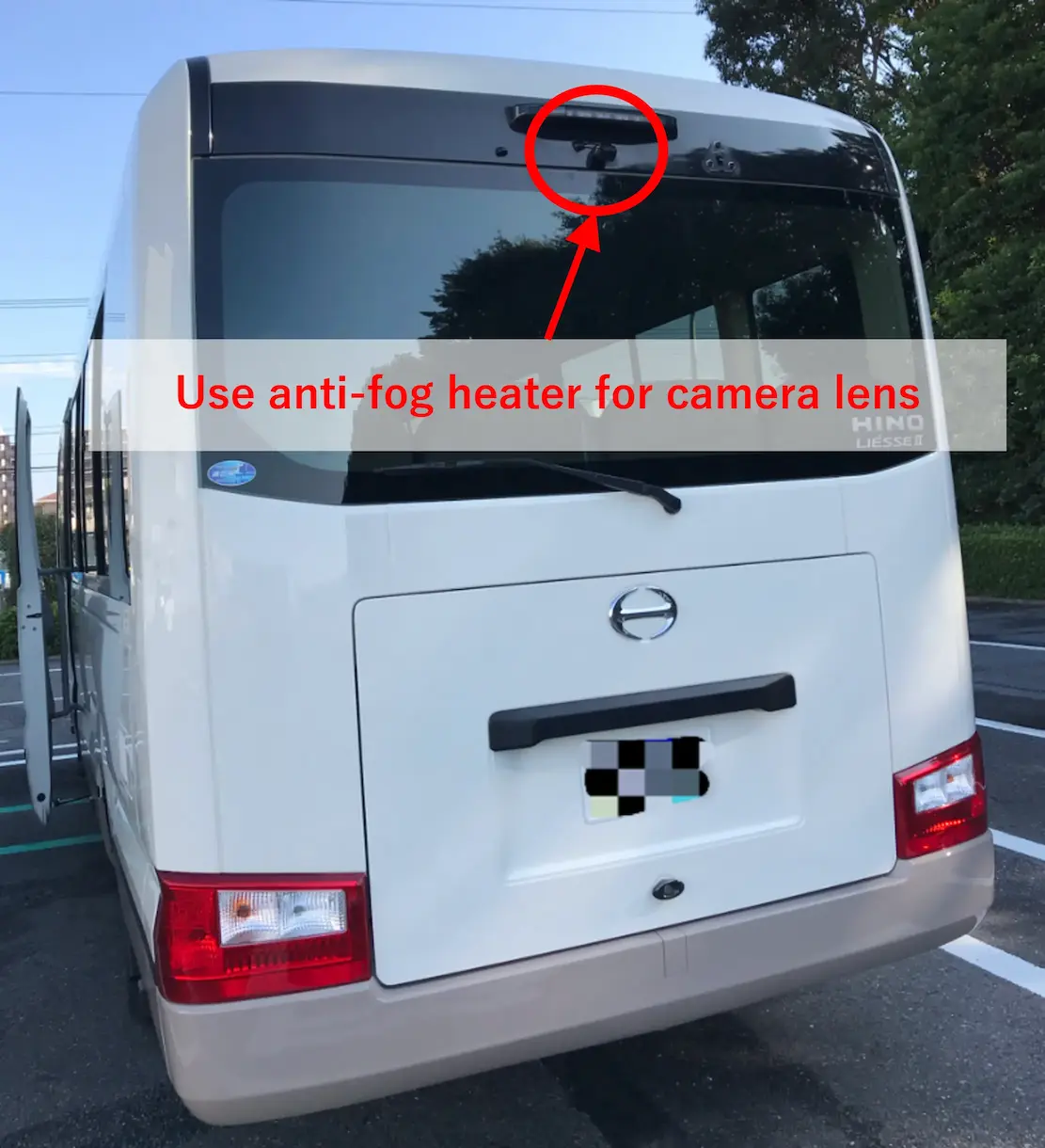

Anti-fog and de-icing heater for automotive cameras
Automotive heaters that support the increasingly important in-vehicle camera as it evolves from ADAS (advanced driver assistance systems) to AD (autonomous driving)
Nowadays, cars on the market are equipped with multiple ADAS.
The system is supported by sensors such as cameras installed to grasp the situation around the vehicle.
As it evolves from ADAS to AD, its quantity is on the rise.
According to a survey, the number of automotive cameras is expected to increase from 6〜8 in the ADAS territory to 16～20 in the AD territorry.
It is important that the camera works properly, for example, in sub-zero conditions. Our heaters support the operation of exterior cameras by melting and deicing snow in a short time.

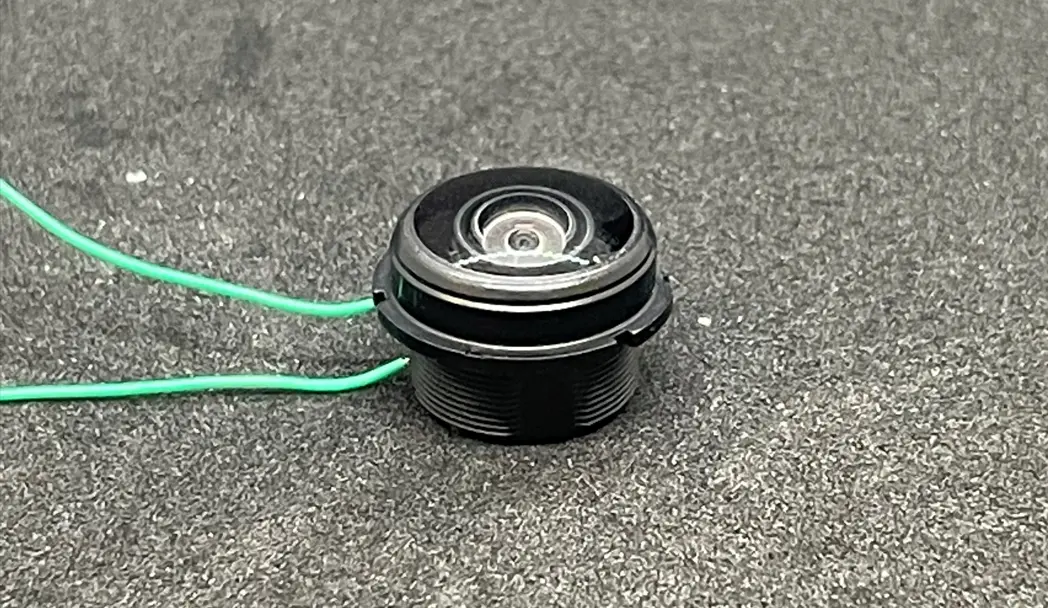

Structure, mechanism, and features of anti-fog and de-icing heaters
- The basic structure is that the heat of PTC heater through the heat sink plate warm the lens evenly.
- PTC heaters are designed according to customer requirements, such as fitting inside and outside the lens body.
- Since the heat sink is a pressed product, the dimensional accuracy of the circle to fit the lens is high, making it easier to assemble.
- Since the material is ceramic, it does not ignite and does not require a controller for temperature control.
